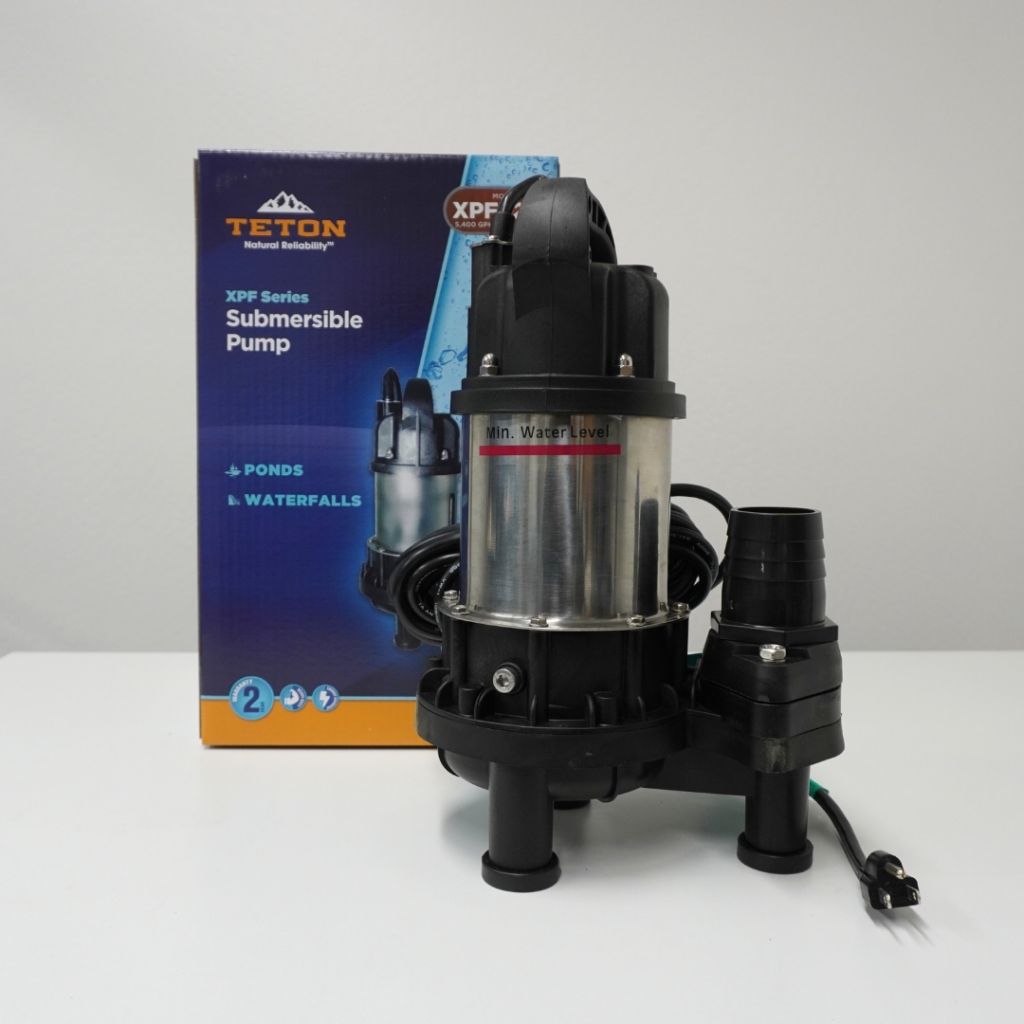

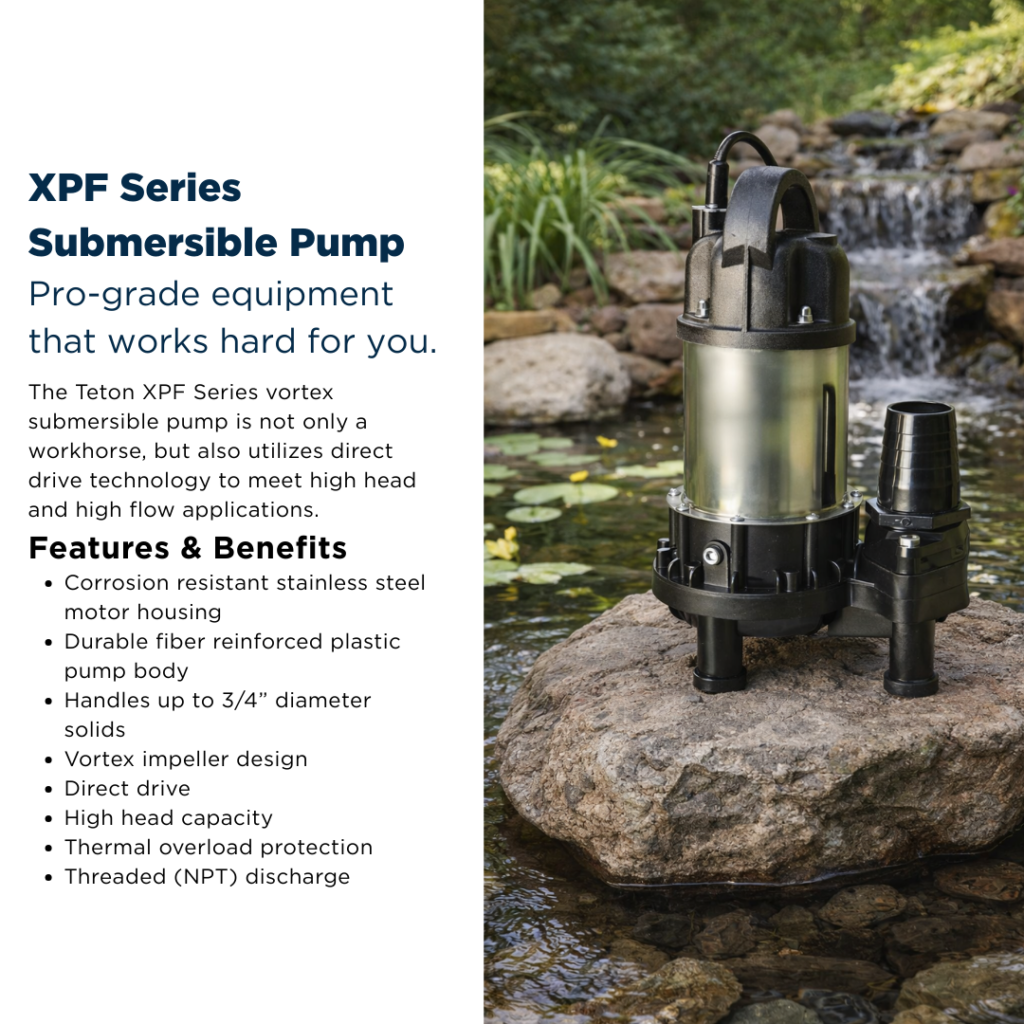

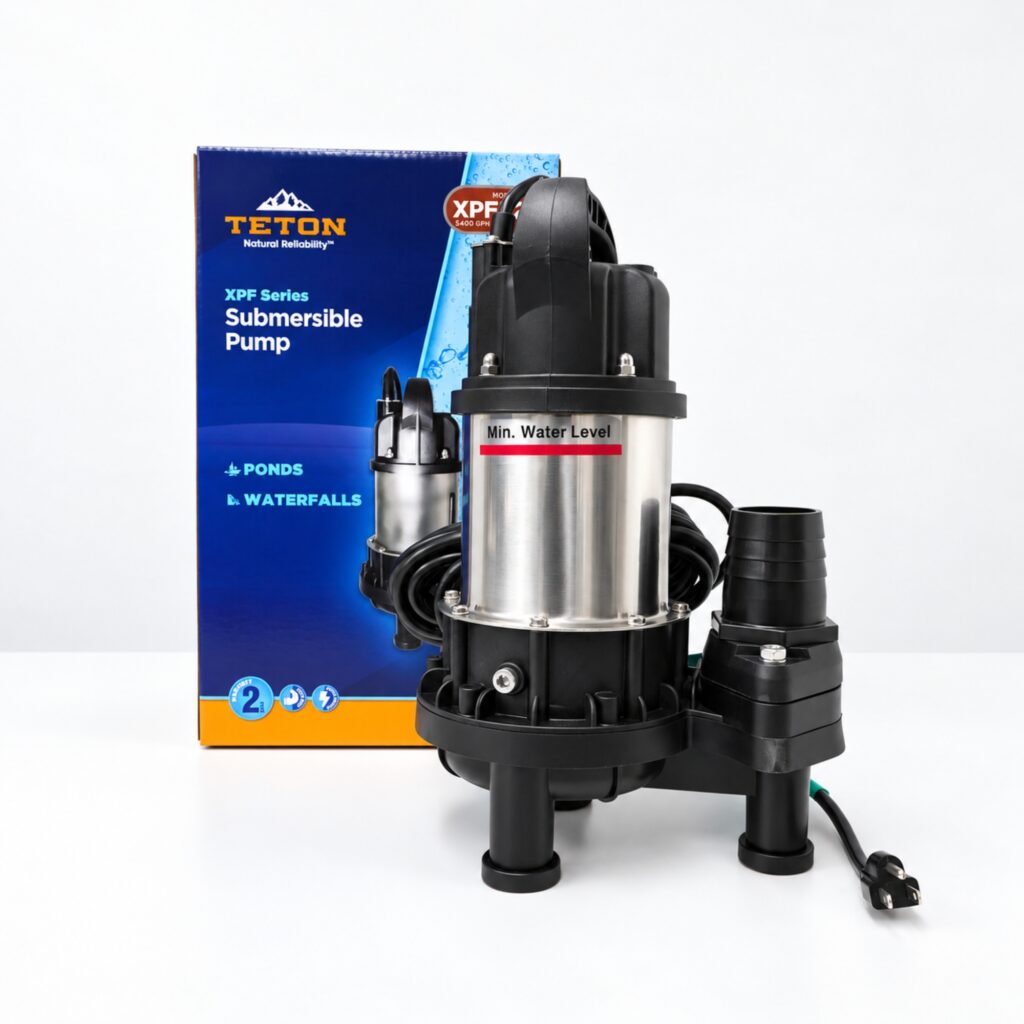

XPF Series Direct Drive / Vortex Submersible Pump

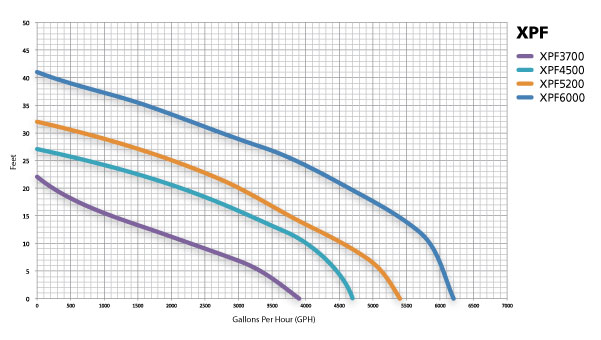

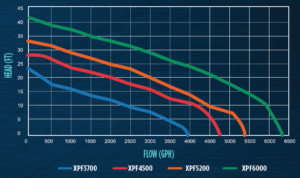

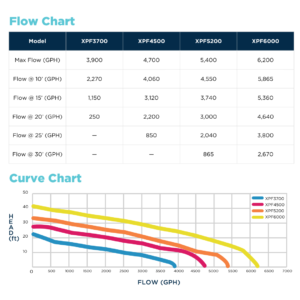

Teton XPF Series is a line of high-volume, direct-drive submersible centrifugal pumps built for large ponds, waterfalls, fountains, filtration systems, and de-watering applications. With a vortex impeller that handles solids up to 3/4″, stainless steel motor housing, and NPT discharge fittings, the XPF Series delivers industrial-grade performance in a fully submersible package. Four models cover 3,900 to 6,200 GPH with heads up to 41 ft. Built-in thermal overload protection. Continuous duty rated. 2-year warranty.

Features ⌄

Vortex impeller — handles solids up to 3/4″, dramatically reducing clogs and maintenance compared to standard centrifugal pumps in debris-heavy pond environments
Direct drive motor — high torque, high head pressure delivery for demanding installations including tall waterfalls, long pipe runs, and high-resistance filter systems
High-volume centrifugal design — 3,900 to 6,200 GPH across four models for large ponds, waterfalls, fountains, and professional filtration
Stainless steel motor housing — corrosion-resistant construction for reliable long-term submersible operation
Fiber-reinforced plastic pump body — durable, lightweight, chemical-resistant housing for continuous-duty outdoor use
Built-in thermal overload protection — automatically shuts down if overheated and self-restarts when cooled, protecting the motor without intervention
NPT FPT threaded discharge — secure, leak-free plumbing connections; 1-1/2″ on XPF3700, 2″ on all other models
Fully submersible — installs directly in pond, skimmer box, or water feature without external housing
Continuous-duty rated — engineered for 24/7 operation when fully submerged

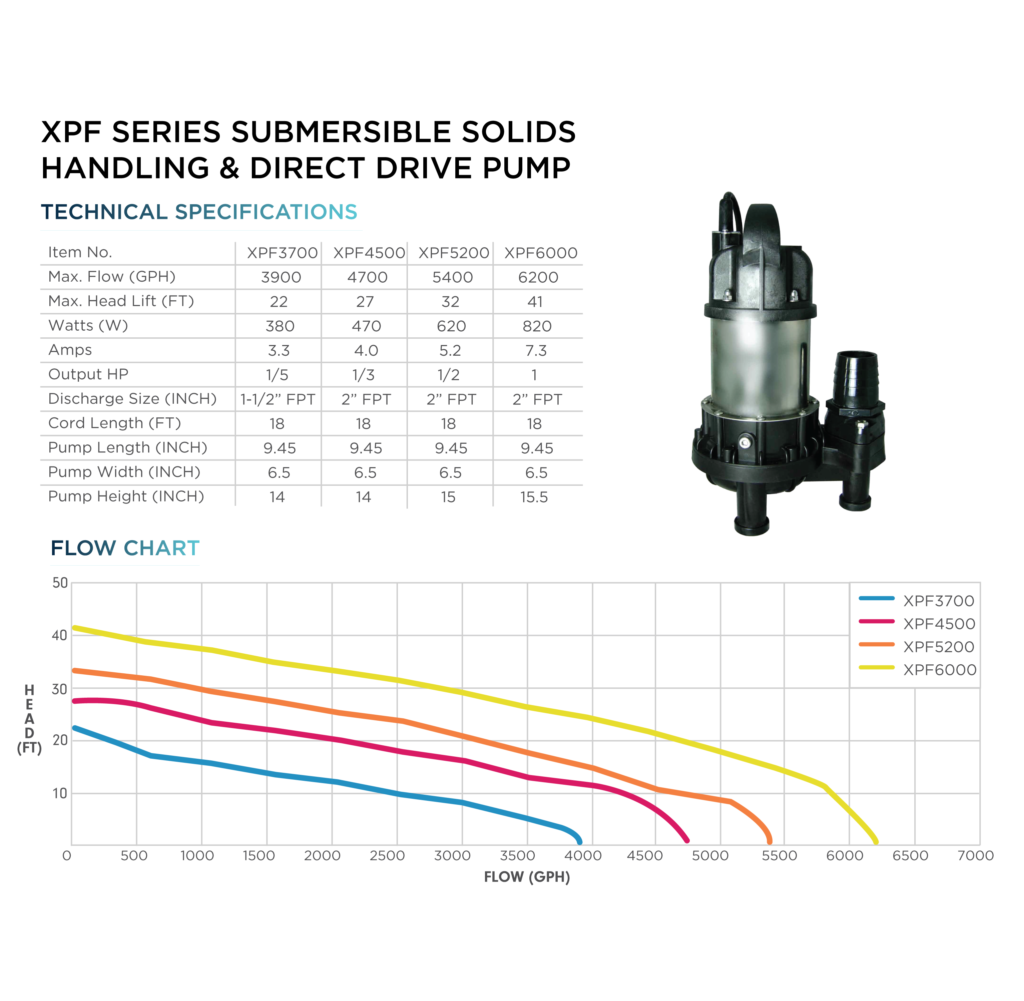

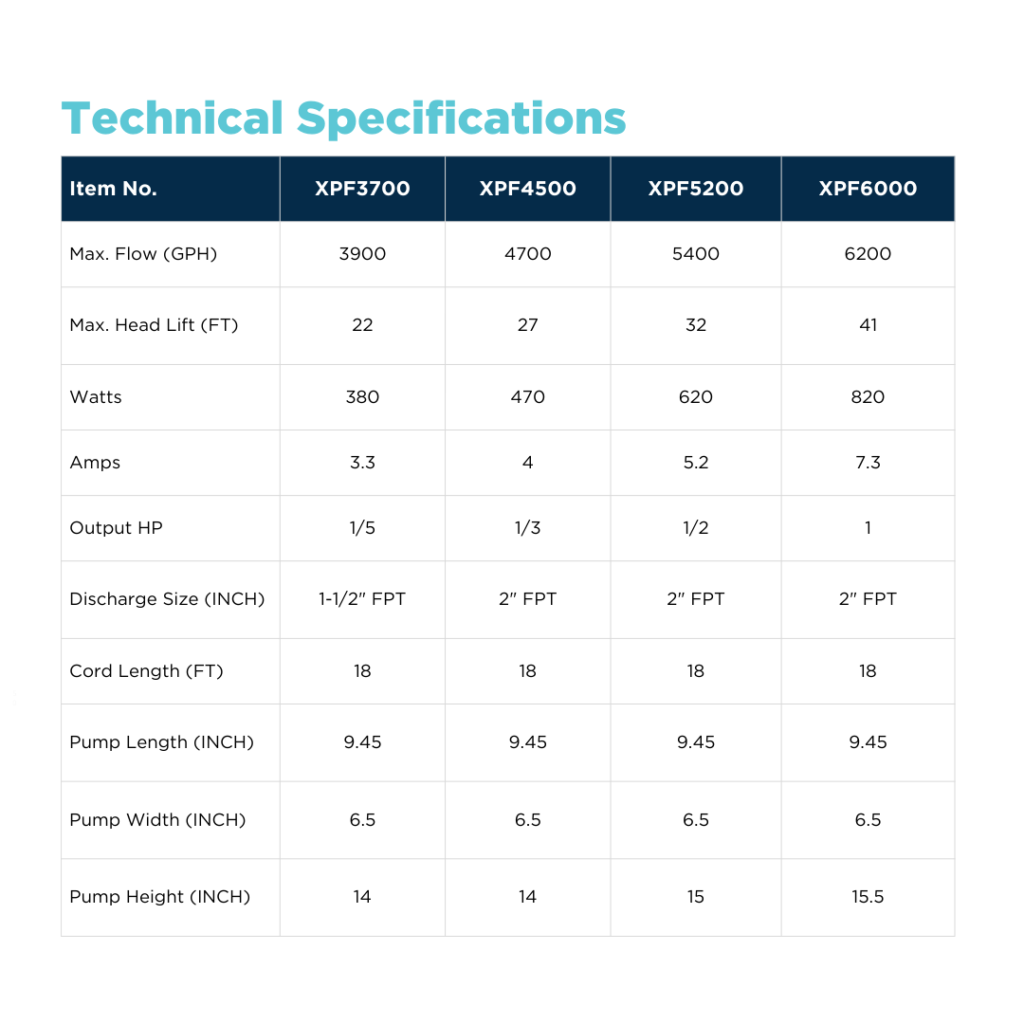

Overview Technical Data Resources

Construction

Industrial pump construction for long-term reliability
Corrosion-resistant stainless steel motor housing
Durable, fiber-reinforced plastic pump body
Robust design for continuous operation

Teton XPF Series Direct Drive Vortex Submersible Pump is engineered for demanding high-volume water movement applications — large koi ponds, tall waterfalls, professional filtration systems, and de-watering situations where high flow, substantial head pressure, and debris tolerance are all required simultaneously.

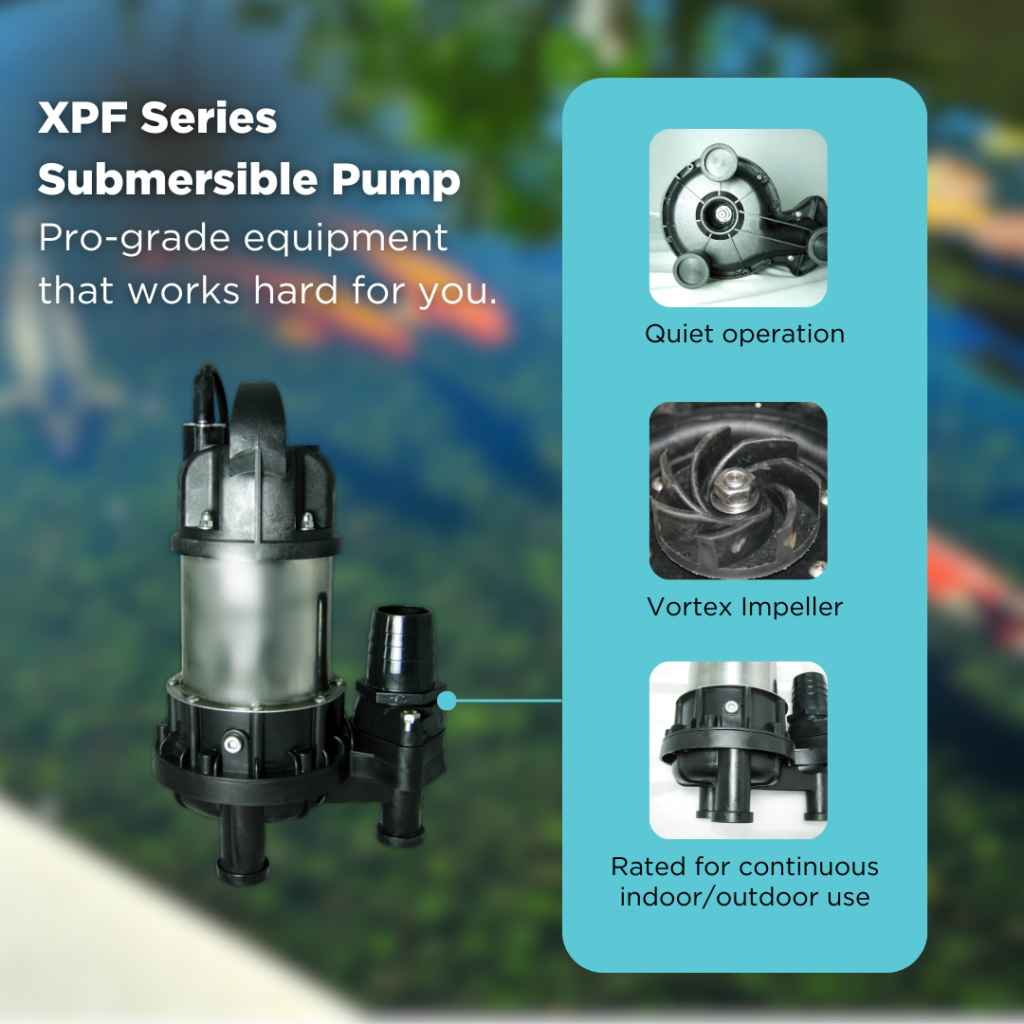

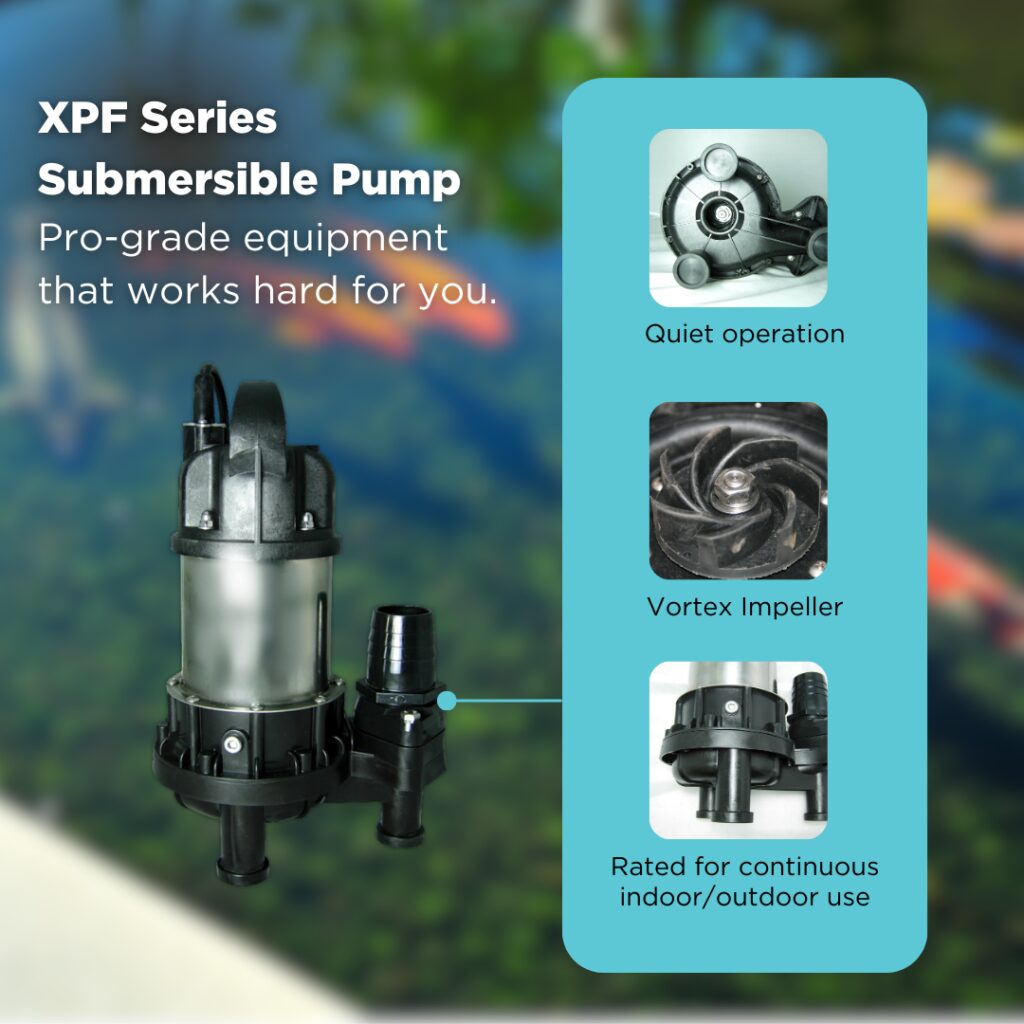

The vortex impeller is the defining feature. Unlike standard centrifugal impellers that pull debris directly through the blades — risking clogging with leaves, algae mats, or small solids — the vortex impeller creates a rotating water column that moves debris through without direct impeller contact. Solids up to 3/4″ pass cleanly. This makes the XPF particularly valuable for pond-bottom installations, skimmer boxes with heavy leaf loads, and seasonal de-watering.

Direct drive construction delivers higher torque and greater head pressure than equivalent-wattage mag drive pumps. The corrosion-resistant stainless steel motor housing and fiber-reinforced plastic pump body are built for continuous submersed outdoor operation. A built-in thermal overload switch automatically shuts the motor down if it overheats and restarts when cooled, protecting the motor through heavy sustained use. NPT FPT discharge on all models accepts standard pipe fittings. 2-year warranty.
